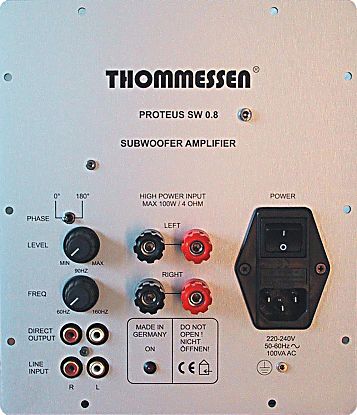

Proteus SW 0.8

Compact subwoofer-module for every living room



Equipped for maximum versatility

Proteus SW 0.8 offers a maximum of useful technological features:

- 3rd order crossover, frequency adjustable from 60Hz -160Hz
- subsonic filter 3rd order at 25 Hz
- switch for phase reversal 0° / 180°
- power amplifier delivering 80 W/4 ohms or 60 W/8 ohms, protected against short circuit and overheating
- cinch inputs L+R
- high power inputs L+R
- cinch outputs (direct-out)
- auto power on with LED indicator
- input for external level control
- AC socket and mains switch with real hardwired "off" position
- toroidal transformer for minimal interference
- made in Germany

Applications

SW 0.8 was designed for the realization of compact subwoofers suitable for even the smallest living room. Its integrated subsonic filtering allows the use of small subwoofer drivers with diameters from ca. 15 cm. For optimum performance we recommend the use of drivers with a diameter from 17-22 cm and a power handling of 100 W.



Elegant design

The 4 mm aluminium front is brushed and anodised. Rounded corners allow the flush mounting of the SW 0.8 to give your subwoofer that factory-made, professional look. All cinch sockets are gold-plated and the pots are of the closed type. A new etching technology makes sure that the printing is protected against abrasion.





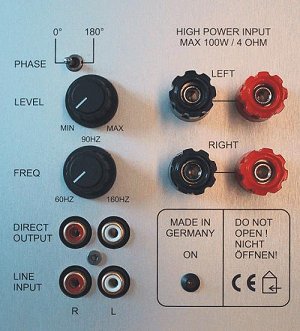

Connectivity

Two gold-plated cinch sockets are offered for the left and right outputs of a preamplifier. A second set of cinch sockets works as a signal splitter for the satellite amplifier. By connecting the Proteus SW0.8 directly to the loudspeaker outputs, it is also possible to employ an integrated amplifier that does not offer separate preamplifier outputs. The amplifier's output power should not exceed 2 x 100 W on 4 ohms.


Easy operation

The SW08 is automatically switched on and off by its auto power-on circuitry. With its adjustable crossover frequency and the phase switch, you can easily align your subwoofer with the existing audio system.

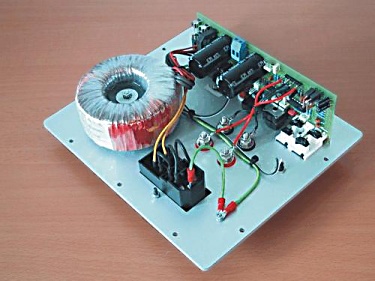

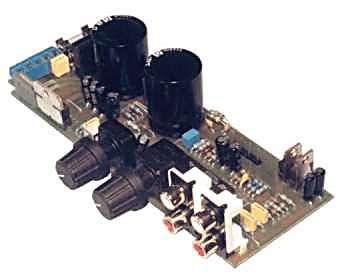

Fig.: SW 0.8 circuit board



Convenient adjustment of loudness level

The optional external level control allows setting the subwoofer level directly from the front of the subwoofer's enclosure.





Specifications



Proteus SW 0.8

- nominal power 4/8 ohms

80W / 60W

- noise

- 99 dB

- adjustable 3rd order subwoofer-filter

60 Hz - 160Hz

- subsonic filter 3rd order

25 Hz

- phase switch

0° / 180°

- input impedance

10 kohms

- damping factor

300

- direct out for satellites

yes

- auto power on

yes

- external level control

optional

- dimensions

220 x 190mm

- cutout dimensions

190 x 160mm
- depth 65mm
- weight 1,85 kg

- power consumption

220V-240V/50Hz-60Hz, standby: 4 W,
on: 100 W max, off: 0 W





Note:
Each SW 0.8 is delivered with a set of ten mounting screws and a power cord. The external level control is available optionally. We recommend installing the SW 0.8 unit in its separate sub-enclosure.
